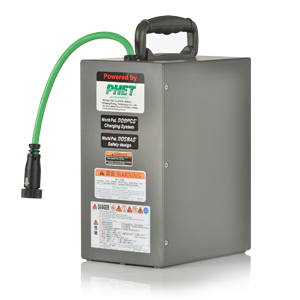

UPINFN12
- Equipped with world patented DOSBAS® Fault Tolerance Battery Safety System
- Equipped with world patented DOBPCS® Battery Charging System
- Portable type, with World Patented Technology INFINITILINKS®, battery pack can be extended to achieve any required voltage and capacity
Single Cell Specifications
Part No. UPINFN12
Nominal Voltage 12.8V to 13.2V
Nominal Capacity 60Ah @ 23℃
Max. Discharge 45A
Max. Pulse Discharge 90A
Cycle Life (@ 25℃) ＞2000 cycles to 80% of initial capacity
Weight 11kg
Dimension (L×W×H) 300mm × 160mm × 230mm
Operating Temperature -40℃ to 75℃
Storage Temperature -20℃ to 60℃
Charging 1.Constant current 1C (max.) to 14.6V limit
2.Constant voltage 14.6V with current taper to 40mA cutoff
2.Constant voltage 14.6V with current taper to 40mA cutoff
※ Capacity, Cycle Life, etc. will be affected by ambient temperature and way of operating
Features
- World Patented Lithium Iron Phosphate (C-LiFePO4) raw material
- Equipped with World Patented DOSBAS® Fault Tolerance Battery Safety System. The battery pack will not explode and will not catch fire due to internal short circuiting (thermal runaway). DOSBAS® system will prevent the whole battery pack from shutting down even if there are some defected cells in the pack.
- Equipped with World Patented DOBPCS® Battery Charging System will automatically balance each battery cell when charging.
- With DOSBAS® Fault Tolerance and DOBPCS® Charging System, it will not be necessary to change the whole battery pack if there is any defected cell in the series. The new cell will be automatically merged and balance with the old cells between each battery pack.
- Together with DOBPCS® Charging System, the World Patented Technology INFINITILINKS®, battery pack can be extended to achieve any required voltage and capacity.
